Lab Testing

We offer over 10 years of experience, providing a broad range of services to clients around the globe. Our network of laboratories and testing facilities, staffed by competent and experienced personnel, help you to reduce risks, shorten time to market and demonstrate the quality and safety of materials, components, or products. Full scale structure testing is our main forte. We can test all type of structures such as wall, slab, scaffolding, beam, etc. Other than that, we offer wide range of construction material testing services. The lab is accredited to ISO/IEC 17025 by Standards Malaysia and accepted worldwide through ILAC-MRA recognition.






Our Facilities

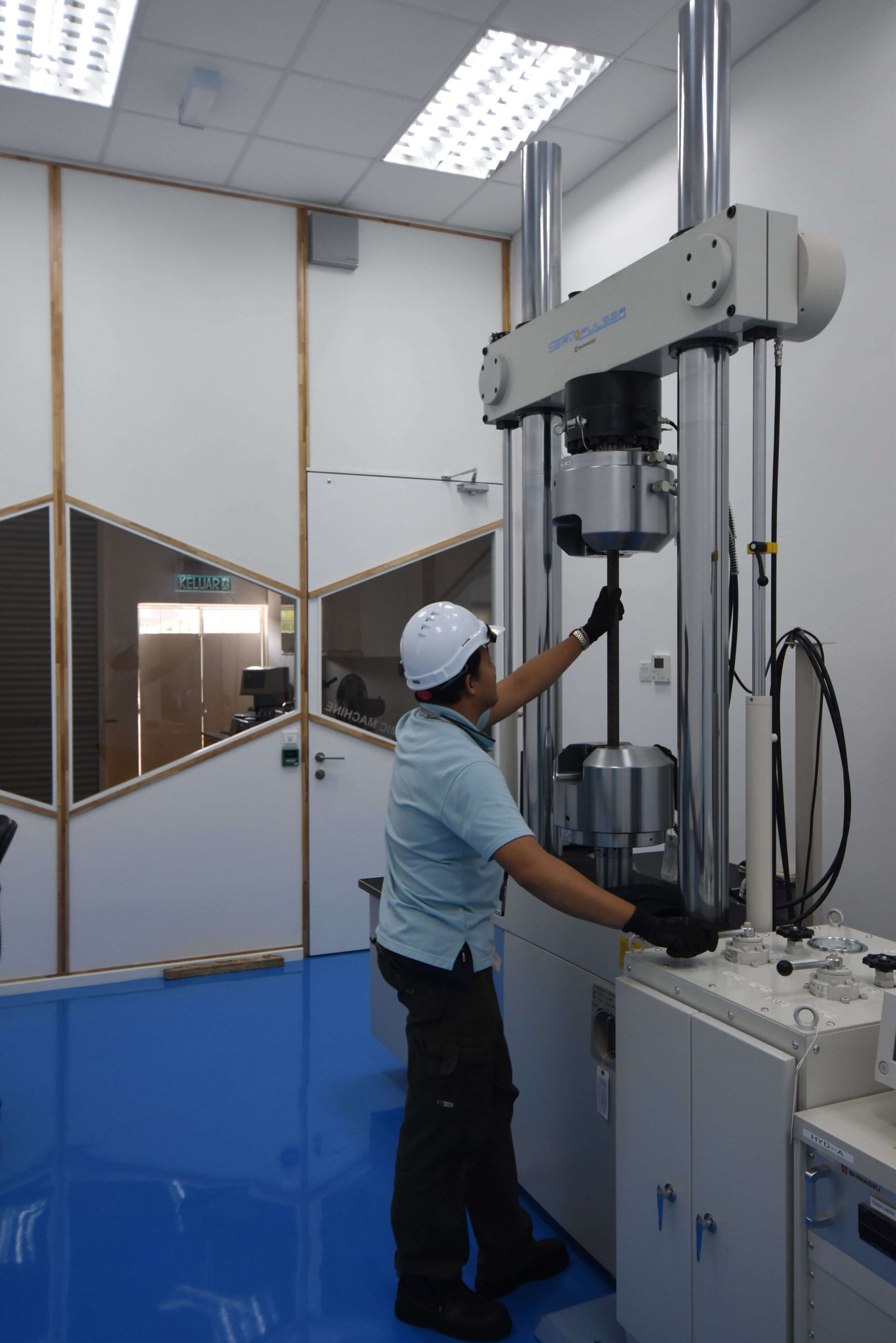

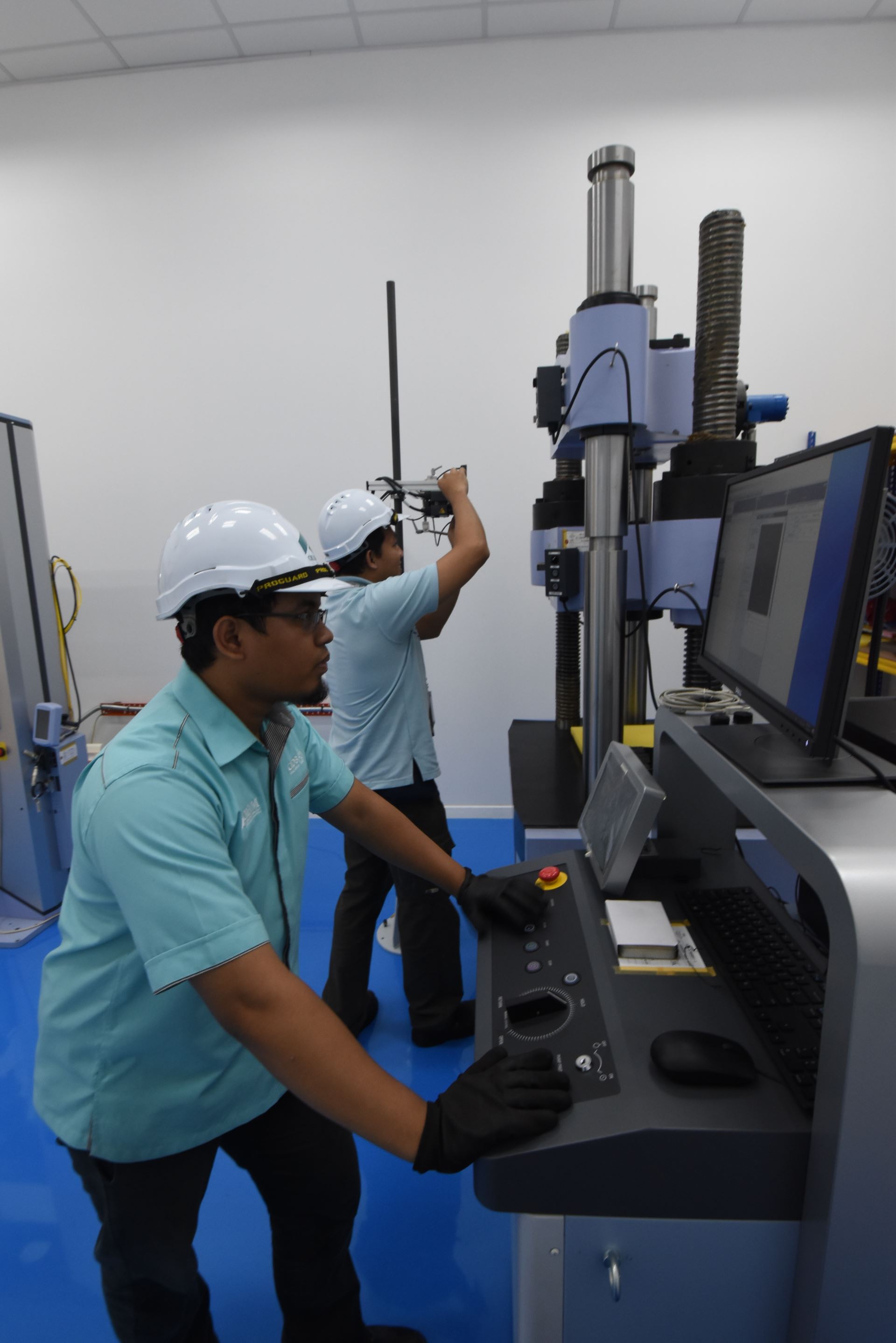

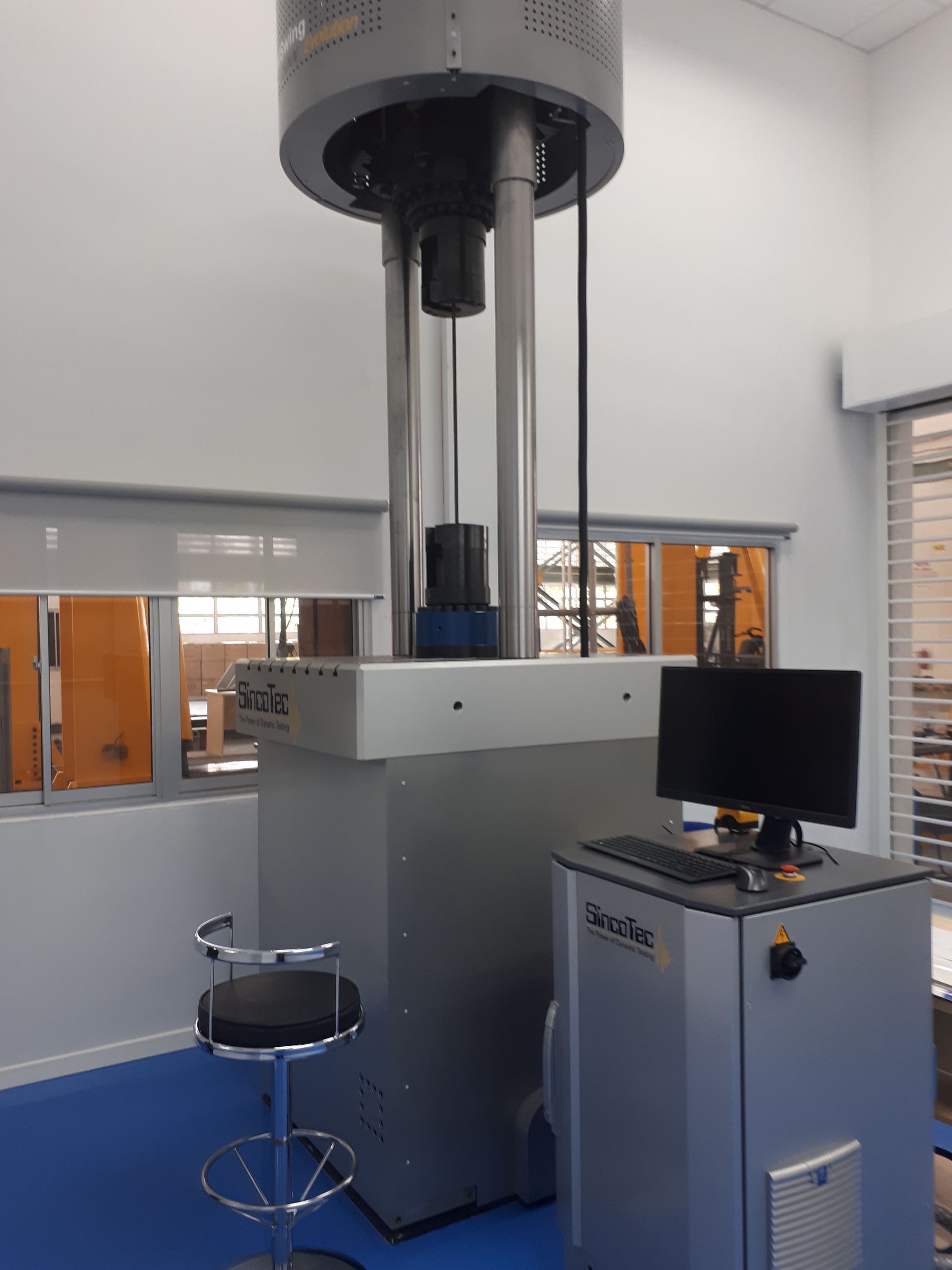

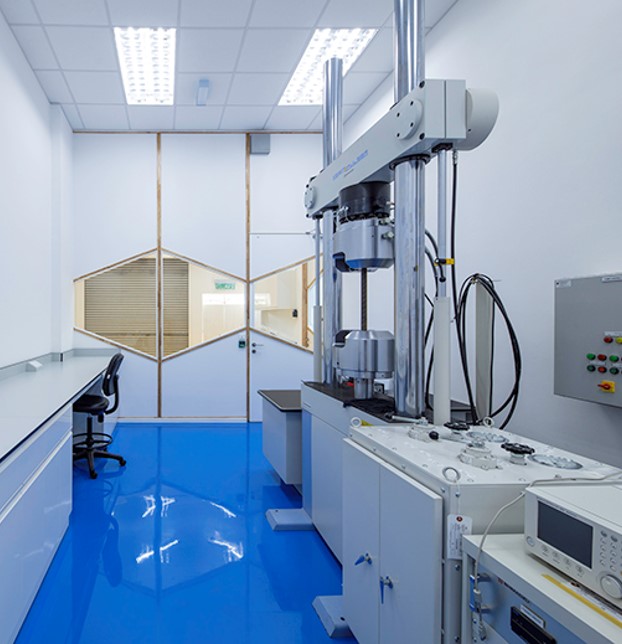

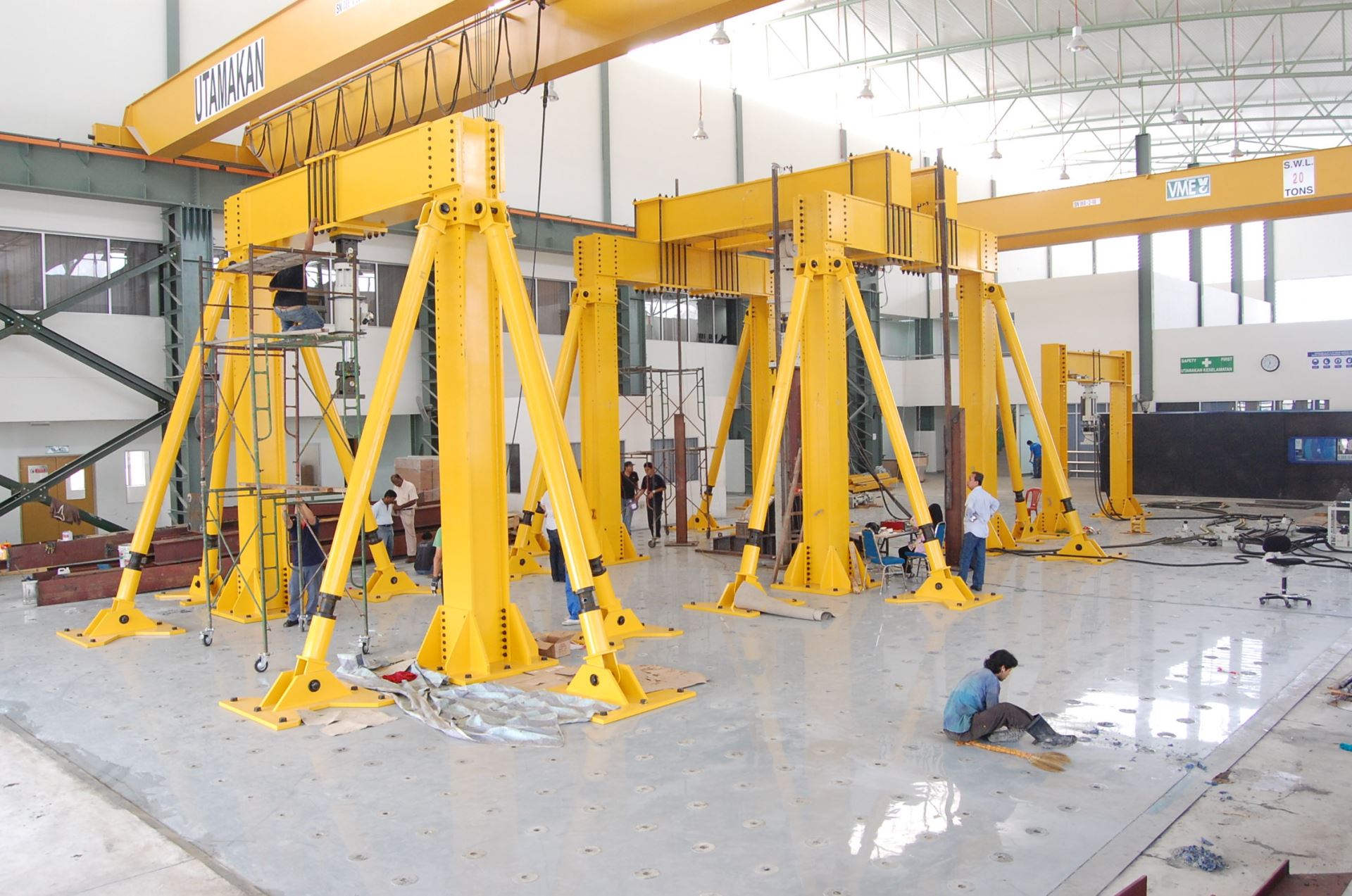

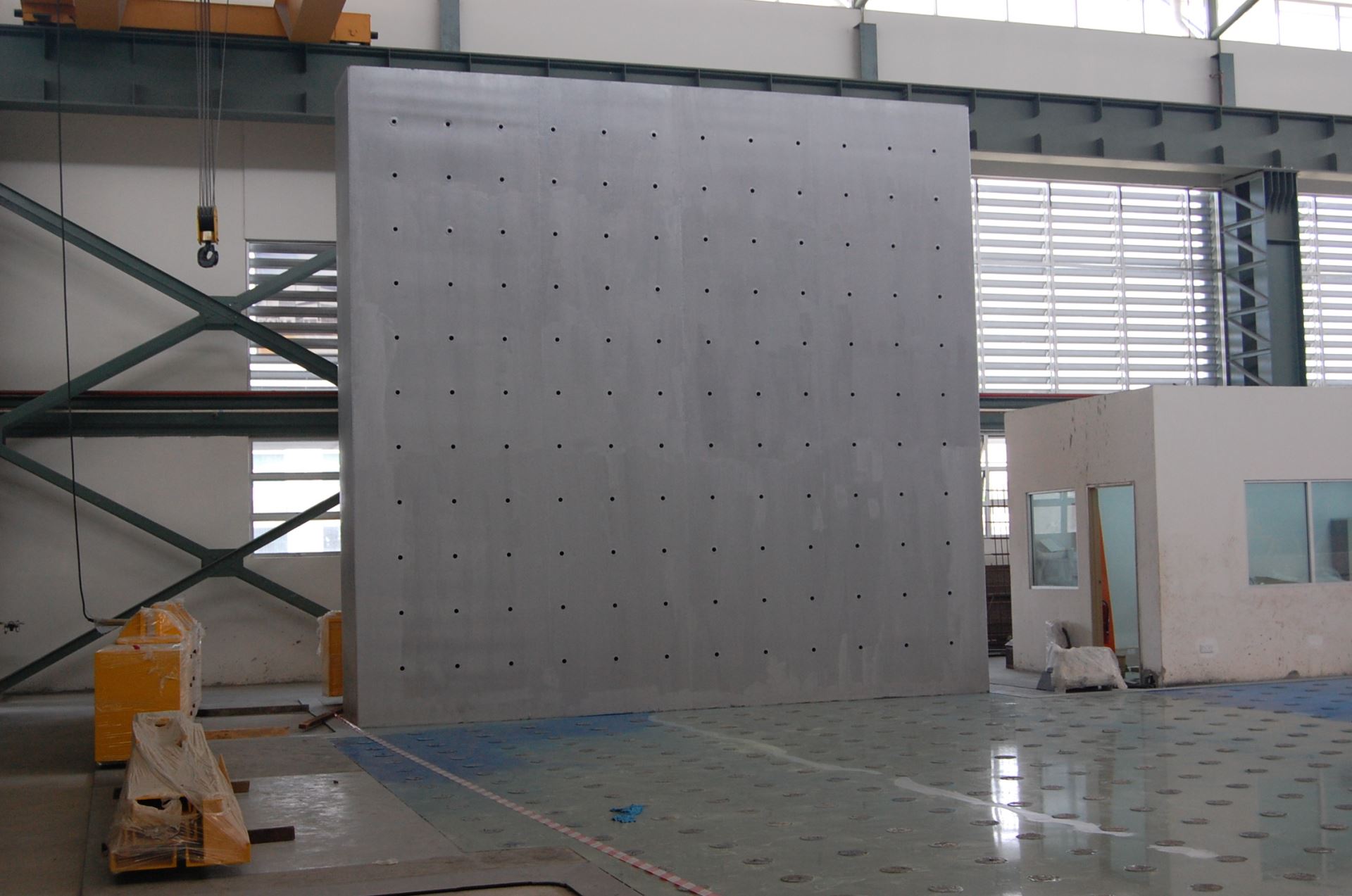

Reaction floor (15m x 26m)   Reaction wall (6m x 6m)   100-2000 kN Universal Testing Machine   200 - 300 kN Dynamic Testing Machine

300 kN Dynamic Actuator   500 – 2000 kN Static Actuator   Static and Dynamic Portal Frame


Types of Test

Scaffolding, Falseworks, Shoring & Accessories

Non-Destructive Test (NDT)

Full Scale Structural Test

Iron & Steel

Concrete

Railway Infrastructure

MKRM Sabah & MKRM Sarawak



Scaffolding, Falseworks, Shoring & Accessories

Typical Product: A-Frame, Modular, Tubular, Vertical & Horizontal Frame, Standard, Ledger, Transom, Cross Brace, U-Head & Jack Base, Sleeve, Coupler, Pin, Steel Prop, Platform, Clamp & Hook, Catwalk, Toe board, Guardrail, Stairway etc

  • Dimension
  • Mass
  • Tensile
  • Fatigue
  • Chemical Element Analysis (XRF, Spectrometer, ONH Analyzer)
  • Coating thickness (Magnetic & Gravimetric method)
  • Coating mass
  • Surface coating
  • Bending / Flexural
  • Shear
  • Proof load
  • Cross cut test
  • Corrosion
  • Weathering
  • Deflection

  • Surface geometry (Microscope & 3D high speed camera scan)
  • Load test on U-Head/Jack base
  • Side protection test
  • Bending test on platform
  • Dynamic test on staircase
  • Drop test
  • Global test on shoring system
  • Full scale test on scaffold, falsework & shoring system
  • 1x3, 3x3, high tower, low tower
  • Test on sleeve & coupler
  • Straightness
  • Load test on prop
  • Pin test on prop
  • Unintentional disengagement on prop
  • Cross brace pin

Non-Destructive Test (NDT)

Typical Product: Concrete, Iron & Steel, Cement

  • Rebound / Schmidt Hammer
  • Ground Penetrating Radar (up to 6 m)
  • Ultrasonic Pulse Echo Wireless Imaging System
  • Eddy Current Instrument
  • Digital Ultra Sonic Flaw Detector
  • Handheld XRF
  • Digital Microscope
  • 3D Bar Scanner for Surface Geometry

Full Scale Structural Test

Typical Product: Industrialised Building System (IBS) Component, Precast Concrete, Steel Frame, Timber Frame, Formwork, Blockworks, Innovative Product, Wall Panel, Beam, Slab, Hollow Core Slab, Staircase, Precast Piles, Pipes, Culvert, Non Load Bearing Wall, Bridges, Pier, Segmental Box Girder, etc

  • Static load test (Vertical, Horizontal)
  • Flexural & Bending test
  • Compression test
  • Load Combination (Vertical + Horizontal)
  • Dynamic Load Test
  • Dimension
  • Proof Load Test
  • Design Conformity Test
  • Strength & robustness test of Wall Panel
  • Customized structure test

Iron & Steel

Typical Product: Rebar, Plate, Mesh, Wire, Rod, Tube, Strand, Tube, Hook, Anchor, Lifting Clutch etc

  • Dimension
  • Mass
  • Tensile
  • Yield
  • Fatigue
  • Chemical Element Analysis (XRF, Spectrometer, ONH Analyzer)
  • Coating thickness (Magnetic & Gravimetric method)
  • Coating mass
  • Surface coating
  • Shear weld
  • Flattening

  • Surface geometry (Microscope & 3D high speed camera scan)
  • Pull out force
  • Bend/Rebend
  • Elongation
  • Relaxation
  • Hardness (Brinell, Rockwell & Vickers)
  • Rebar bond test
  • Mechanical splice test
  • Weathering
  • Corrosion
  • Sample cutting

Concrete

Typical Product: Ready Mixed Concrete (RMC), Fresh Concrete, Hardened Concrete, Concrete coring, Mortar, Aggregates, Cement, Bricks, Blocks

  • Sample Preparation
  • Dimension & Mass
  • Compression test (Cube, Cylinder, Core)
  • Flexural Test
  • Density
  • Water absorption
  • Specific Gravity
  • NDT Test on Concrete

  •  Slump test
  • Cement chemical properties (XRF)
  • Sieve analysis
  • Compacting factor
  • Cube test with RFID technology
  • Concrete coring
  • Tensile splitting
  • Immersion

Railway Infrastructure

Typical Product: Precast Concrete Railway Sleepers, Composite Sleepers, Bearers, Rail Track

  • Bending moment test on sleepers (Negative / Positive)
  • Bending moment test on rail seat (Negative / Positive)
  • Dynamic load test on rail seat
  • Fatigue test on rail seat
  • Insert Pull out test
  • Bend test on rail track
  • Chemical composition test
  • Hardness Test
  • Dynamic/Fatigue test

MKRM Sabah & MRKM Sarawak

Typical Product: Concrete, Cement, Aggregate & Iron & Steel

Concrete
  • Compression
  • Flexural
  • Water depth of penetration
  • Slump
  • Density
  • Dimension
  • Air content
  • Degree of Compatibility
  • Water absorption

Cement
  •  Compression on mortar
  • Soundness
  • Setting time
  • Fineness (Blaine method)

Aggregate
  • Particle size distribution
  • Impact value
  • Crushing value
  • Flakiness index
  • Elongation

Iron & Steel
  • Tensile
  • Yield strength
  • Elongation
  • Dimension
